Electric height adjustable washbasin system with mirror and lighting – DESIGNLINE 417-11
Product Overview Electric Height Adjustable Washbasins
- Description
- Brand
Description
Leg room beneath the basin
445mm
Total depth
567mm
Distance from front edge to mixer tap lever
225mm
Washbasin
Porcelain basin 600x445mm, incl. overflow and plug
Max load basin
50kg
Operation
Wired hand controller, IP65 rated, with support hook
Type of lift
Electric steplessly height-adjustable washbasin module with mirror and lighting
Width
715mm
Installation
Wall-mounted
Height adjustment
250mm
Speed level
18mm/s
Lifting force
100kg
Electrical connection
Plug to 230 V, max 1.5A
Lightning
Lighting ramp: Solid oiled oak with 3 × recessed spotlights (connected to external power switch)
Spotlights: LED 3W, 3000K
Transformer: 230V
IP-class
IPX4
Safety
Safety switch stops the descent of the basin if it comes into contact with an obstruction
Material
Back panel: Plywood coated with high-pressure laminate
Mirror: 1000×600×4 mm in silver-backed float glass with ground edges incl. mirror clips
Mounting cover: White plastic
Plumbing connections
Flexible water hoses and drain hose with water trap
Warranty
2 years Warranty
This product is covered by a 2-year warranty against manufacturing defects.

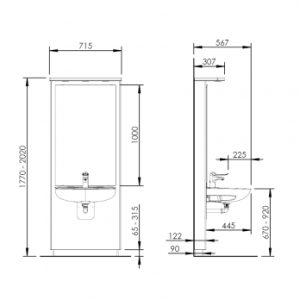

Dimensions
Functions and Advantages
- Leg room under the washbasin: 445mm
- Distance from front edge to tap lever: 225mm
- Compact washbasin, ideal for children or tight spaces
- Total depth: 56.7cm
- Width: 71.5cm
- Modern design with a choice of colours
- Mirror and lighting move in tandem with the basin
- Plumbing connections are elegantly concealed in the lifting unit
- Easy-to-use controller
– Basin (425-011)
– Mixer tap (425-105)
– Mirror and lighting (3 spotlights)
– Flexible drain hose with water trap
– Flexible water hoses
– Hand controller with coiled cord
