Electric height adjustable washbasin system with mirror and lighting – BASICLINE 433-01
Product Overview Electric Height Adjustable Washbasins
-
Electric height adjustable washbasin system with mirror and lighting – DESIGNLINE 417-15
Select options This product has multiple variants. The options may be chosen on the product page
- Description
- Brand
Description
Leg room beneath the basin
646mm
Distance from front edge to mixer tap lever
265mm
Total depth
646mm
Washbasin
Porcelain basin 600x490mm, incl. overflow and plug
Max load basin
50kg
Operation
Wired hand controller, IP65 rated, with support hook
Type of lift
Electric steplessly height-adjustable washbasin module with mirror and lighting
Width
620mm
Installation
Wall-mounted
Height adjustment
250mm
Speed level
18mm/s
Lifting force
100kg
Electrical connection
Plug to 230 V, max 1.5A
Lightning
Lighting: Aluminium/plastic, Colour: Chrome
LED lighting12V /6-8W, 4000K (connected to an external switch)
Transformer: Primary (in) 220-240 V, Secondary (out) 12V
IP-class
IPX4
Safety
Safety switch stops the descent of the basin if it comes into contact with an obstruction
Material
Back panel: white melamine coated particleboard W899 with 2mm ABS edging
Mounting plate: Powder coated alu-zinc coated steel, white RAL 9010
Mirror: 1000x600x4mm silver-coated float glass with polished edges
Safety switches and other metal parts:
Powder-coated steel sheet
Plumbing connections
Flexible water hoses and drain hose with water trap
Warranty
2 years Warranty
This product is covered by a 2-year warranty against manufacturing defects.

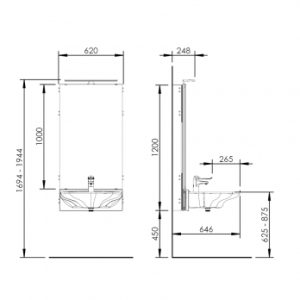

Dimensions
Functions and Advantages
- Leg room under the washbasin: 646mm
- Distance from front edge to tap lever: 265mm
- Wheelchair accessible washbasin with shallow depth and tapered front edge
- Total depth: 64.6cm
- Width: 62cm
- Integrated safety switch
- Mirror and lighting move in tandem with the basin
- Free space below the unit for plumbing connections
- Easy-to-use controller
– Basin
– Mixer tap (425-105)
– Mirror and lighting
– Flexible drain hose with water trap
– Flexible water hoses
– Hand controller with coiled cord
– Safety switch
