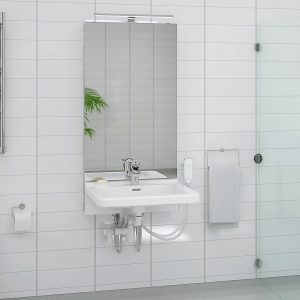

Electric height adjustable washbasin system with mirror and lighting – BASICLINE 433-0
Product Overview Electric Height Adjustable Washbasins
- Description
- Brand
Description
For washbasin
Max weight: 40kg
Max width: 600mm
Max depth: 600mm
Basin centre-to-centre fixings: 280mm
Total depth
115mm
Type of lift
Electric steplessly height-adjustable washbasin module with mirror and lighting
Width
620mm
Installation
Wall-mounted
Height adjustment
250mm
Speed level
18mm/s
Lifting force
100kg
Electrical connection
Plug to 230 V, max 1.5A
Lightning
Lighting: Aluminium/plastic, Colour: Chrome
LED lighting12V /6-8W, 4000K (connected to an external switch)
Transformer: Primary (in) 220-240 V, Secondary (out) 12V
IP-class
IPX4
Safety
Safety switch stops the descent of the basin if it comes into contact with an obstruction
Material
Back panel: white melamine coated particleboard W899 with 2mm ABS edging
Mounting plate: Powder coated alu-zinc coated steel, white RAL 9010
Mirror: 1000x600x4mm silver-coated float glass with polished edges
Safety switches and other metal parts:
Powder-coated steel sheet
Plumbing connections
Flexible water hoses and drain hose with water trap
Warranty
2 years Warranty
This product is covered by a 2-year warranty against manufacturing defects.
Dimensions
Functions and Advantages
- Width: 62cm
- Mirror and lighting move in tandem with the basin
- Free space below the unit for plumbing connections
- Basin centre-to-centre fixings: 28cm
– Mirror and lighting
