Electric height adjustable washbasin – BASICLINE 415-01
Product Overview Electric Height Adjustable Washbasins
- Description
- Brand
Description
Leg room beneath the basin
526mm
Distance from front edge to mixer tap lever
265mm
Total depth
635mm
Washbasin
Porcelain basin 600x490mm, incl. overflow and plug
Max load basin
50kg
Operation
Wired hand controller, IP65 rated, with support hook
Type of lift
Electric, steplessly adjustable washbasin unit, lowprofile
Width
650mm
Installation
Wall-mounted
Height adjustment
250mm
Speed level
18mm/s
Lifting force
100kg
Electrical connection
Plug to 230 V, max 1.5A
IP-class
IPX4
Safety
Safety switch stops the descent of the basin if it comes into contact with an obstruction
Material
Back panel: 4 mm compact laminate with sides of anodised aluminium
Top shelf: 12 mm compact laminate
Safety switch: Powder-coated sheet steel
Installation cover: 4 mm compact laminate
Plumbing connections
Flexible water hoses and drain hose with water trap
Warranty
2 years Warranty
This product is covered by a 2-year warranty against manufacturing defects.

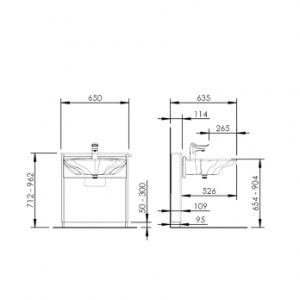

Dimensions
Functions and Advantages
- Leg room under the washbasin: 526mm
- Distance from front edge to tap lever: 265mm
- Wheelchair accessible washbasin with shallow depth and tapered front edge
- Total depth: 63.5cm
- Width: 65cm
- Integrated safety switch
- Low level (can be installed beneath a mirror or cabinet)
- Plumbing connections are elegantly concealed in the lifting unit
- Easy-to-use controller
– Basin
– Mixer tap (425-105)
– Flexible drain hose with water trap
– Flexible water hoses
– Hand controller with coiled cord
– Safety switch
