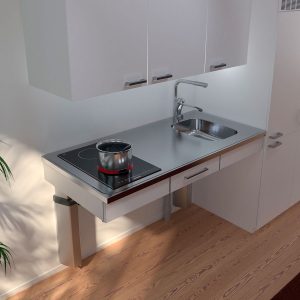

Worktop Lift, Manual adjustable, Manulift 6380LA – 40 mm front
Product Overview Lifting systems - Worktops
- Description
- Additional information
- Brand
Description
Installation
Wall-mounted
Front height
40 mm
Plumbing connections
Connection is made with flexible hoses
Height adjustment
Manually adjustable by 300 mm in intervals of 25 mm
(700-1000 mm excl. top board)

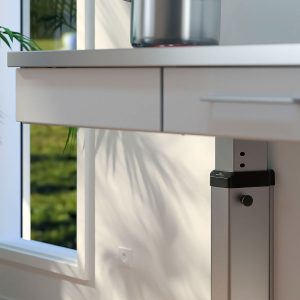

A built-in gas spring facilitates height adjustment:
Pull out the locking pin, adjust the height with the help of the gas spring. Lock the position with the locking pin.
Max load
100 kg
Frame depth
560-590 mm from wall
Dimensions cover plates
2 pcs, width = width of the lift -10 mm, height 438 mm,
thickness 12-20 mm
Width worktop
Width = width of the lift
Depth worktop
565-630 mm (15 mm shallower than worktops on fixed cabinets)
Number of turns / cm height adjustment
3.3
Space to wall / adjoining cabinet
5 mm
Space to wall (for tiles)
15 mm
Tiling
From 700 mm above floor (alternatively all the way down to the floor)
Delivery modules
Ready-mounted worktop incl. safety switch, motors
Fittings supplied
Bracket for fronts and top board
Material
Aluminium frame
Warranty
2 years Warranty
This product is covered by a 2-year warranty against manufacturing defects.

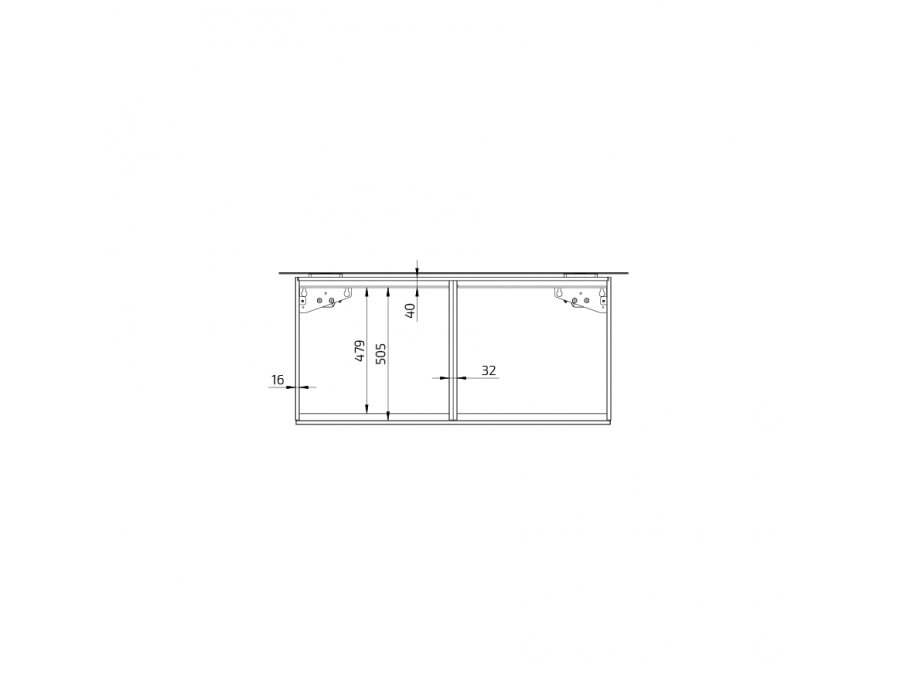

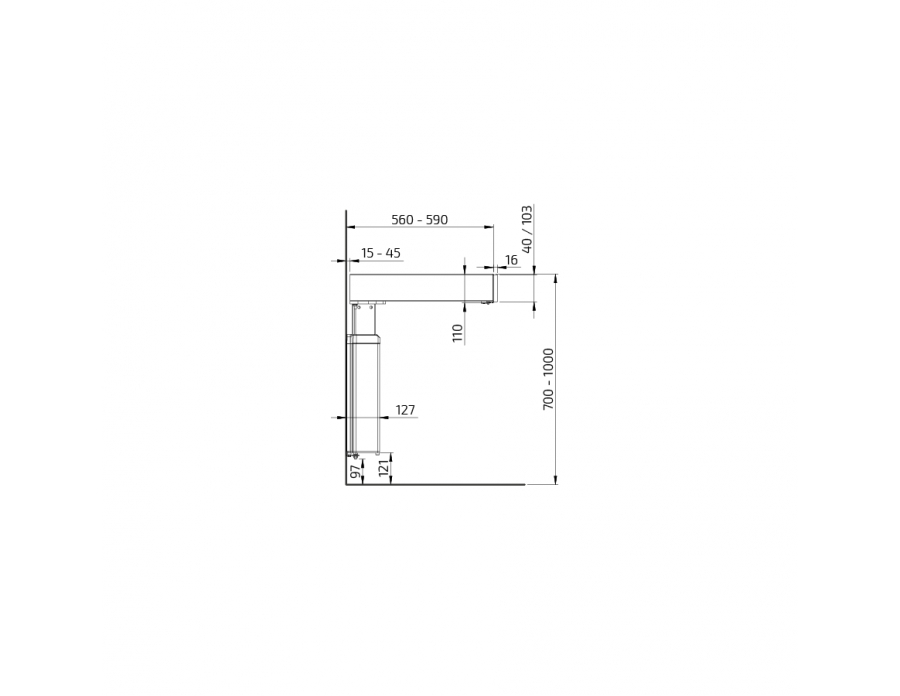

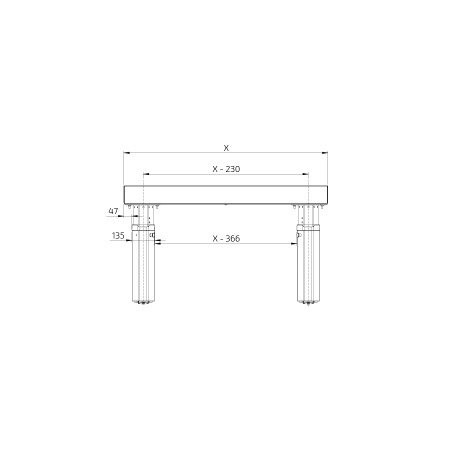

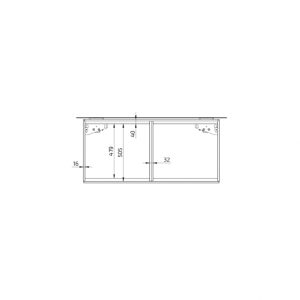

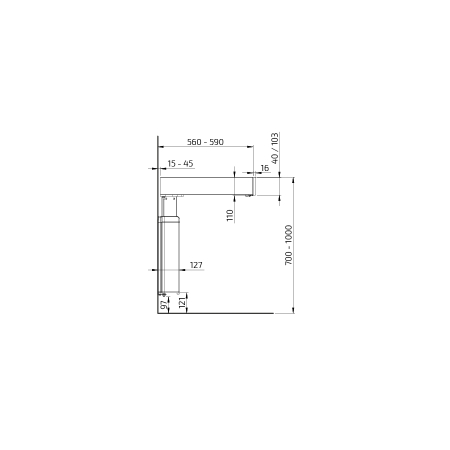

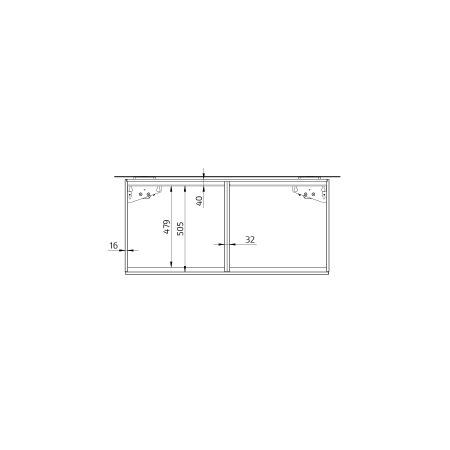

Dimensions
Functions and Advantages
- Can be equipped with drawers, hob and sink
- 30 cm height adjustment
- Adjustable depth, 56 – 59 cm from wall
- Frame in aluminium. Prepared from factory. Movable (sideward) and angle adjustable consoles
- Brackets and screws for installation of fronts and countertop are included in the delivery
Additional information
Lift Width | 59.0 cm, 60.0 cm, 69.0 cm, 70.0 cm, 79.0 cm, 80.0 cm, 89.0 cm, 90.0 cm, 99.0 cm, 100.0 cm, 109.0 cm, 110.0 cm, 119.0 cm, 120.0 cm, 129.0 cm, 130.0 cm, 139.0 cm, 140.0 cm, 149.0 cm, 150.0 cm, 159.0 cm, 160.0 cm, 169.0 cm, 170.0 cm, 179.0 cm, 180.0 cm, 189.0 cm, 190.0 cm, 199.0 cm, 200.0 cm, 209.0 cm, 210.0 cm, 219.0 cm, 220.0 cm, 229.0 cm, 230.0 cm, 239.0 cm, 240.0 cm |
---|---|
Planning Width | 60.0 cm, 61.0 cm, 70.0 cm, 71.0 cm, 80.0 cm, 81.0 cm, 90.0 cm, 91.0 cm, 100.0 cm, 101.0 cm, 110.0 cm, 111.0 cm, 120.0 cm, 121.0 cm, 130.0 cm, 131.0 cm, 140.0 cm, 141.0 cm, 150.0 cm, 151.0 cm, 160.0 cm, 161.0 cm, 170.0 cm, 171.0 cm, 180.0 cm, 181.0 cm, 190.0 cm, 191.0 cm, 200.0 cm, 201.0 cm, 210.0 cm, 211.0 cm, 220.0 cm, 221.0 cm, 230.0 cm, 231.0 cm, 240.0 cm, 241.0 cm |
