Wall Mounted Motorised Height Adjustable Hob Module 6300LA-S4
$0.00
Product Overview Lifting systems - Worktops
- Description
- Additional information
- Brand
Description
Installation
Wall
Front height
40 mm
Height adjustment
Motorised, steplessly adjustable 300 mm (700-1000 mm excl. top board)
Speed level
30 mm/sec.
Operation
Control button, ALU-design
Safety
The safety strip is placed under the front edge of the worktop. If anything touches the safety strip, the lifting unit stops
Electrical connection
Plug for 230 V, max 5.0A
Lifting force
100kg
IP-class
IP 20
Delivery modules
Ready-mounted worktop incl. safety switch, motors
Frame depth
576 – 606 mm from wall (Incl. front)
Material
Frame:
Aluminum
Cover panels for covering installations under the worktop:
12 mm white melamine. Several colours can be offered upon request.
Fronts:
White lacquered aluminum. Several colours can be offered upon request.
Top board:
30 mm worktop in high pressure laminate. Post-shaped front edge. Several colours can be offered upon request.
Plumbing connections
Connection is made with flexible hoses
Dimensions cover plates
2 pcs, width = width of the lift -10 mm, height 438 mm,
thickness 12-20 mm
Width worktop
Width = width of the lift
Depth worktop
565-630 mm (15 mm shallower than worktops on fixed cabinets)
Space to wall / adjoining cabinet
5 mm
Space to wall (for tiles)
15 mm
Tiling
From 700 mm above floor (alternatively all the way down to the floor)
Fittings supplied
Bracket for fronts
Warranty
2 years Warranty
This product is covered by a 2-year warranty against manufacturing defects.

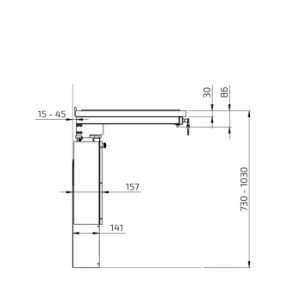

Dimensions
Wall mounted, motorised hob module. Prepared for glass ceramic hob with four cooking zones. Front height is 40 mm.

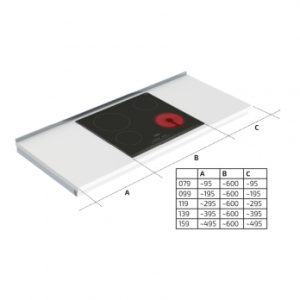

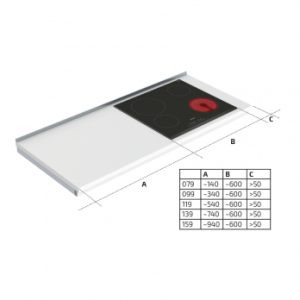

The module is available in left, centre, or right version.
The modules have a 10 mm shorter width to automatically give 5 mm gap on either side of the unit for the up and down movement. They are also 15 mm shallower in depth to make room for splash protection/tiles.
The anti-pinch strip is placed under the front edge of the worktop. If anything touches the strip, the lift unit stops.
Electronics and motor system “Plug and Play”.
The module can be integrated into environments from any kitchen manufacturer.
Functions and Advantages
- Motorised wall mounted, adjustable 30 cm
- Adjustable depth 576-606 mm incl. Front
- Tiltable worktop plane for adjustment
- Control button, Mini
- Safety lock with key
- Safety switches under front of worktop
- Cover panels hiding installations on the wall under the worktop
- Aluminium front rim
- Worktop
- Brushed aluminium rear edge strip
Additional information
| Select model | Left, Center, Right |
|---|---|
| Lift Width | 79.0 cm, 99.0 cm, 119.0 cm, 139.0 cm, 159.0 cm |
| Planning Width | 80.0 cm, 100.0 cm, 120.0 cm, 140.0 cm, 160.0 cm |
