Wall Mounted Manual Adjustable Combi Kitchen 6380-ES11S4
Product Overview Height Adjustable Modular Worktops
- Description
- Additional information
- Brand
Description
Installation
Wall
Front height
103 mm
Height adjustment
Manually adjustable by 300 mm in intervals of 25 mm
(700-1000 mm excl. top board)

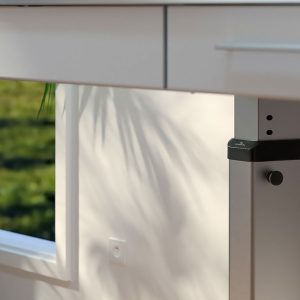

A built-in gas spring facilitates height adjustment:
Pull out the locking pin, adjust the height with the help of the gas spring. Lock the position with the locking pin.
Max load
100 kg
Delivery modules
Ready-mounted worktop incl. wall-mounted brackets
Frame depth
576 – 606 mm from wall (Incl. front)
Material
Frame:
Aluminum
Cover panels for covering installations under the worktop:
12 mm white melamine. Several colours can be offered upon request.
Fronts:
White lacquered aluminum. Several colours can be offered upon request.
Top board:
30 mm worktop in high pressure laminate. Post-shaped front edge. Several colours can be offered upon request.
Dimensions cover plates
2 pcs, width = width of the lift -10 mm, height 438 mm,
thickness 12-20 mm
Width worktop
Width = width of the lift
Depth worktop
565-630 mm (15 mm shallower than worktops on fixed cabinets)
Space to wall / adjoining cabinet
5 mm
Space to wall (for tiles)
15 mm
Tiling
From 700 mm above floor (alternatively all the way down to the floor)
Fittings supplied
Bracket for fronts and top board

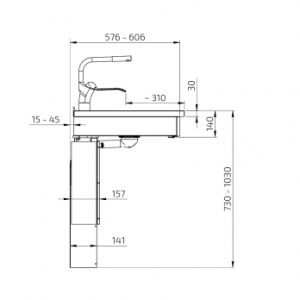

Dimensions
Wall mounted, Manually Height Adjustable Combi Kitchen Module – 6380-ES11S4. The module contains one shallow sink bowl with overflow. Prepared for glass ceramic hob with four cooking zones.

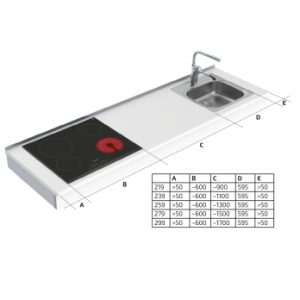

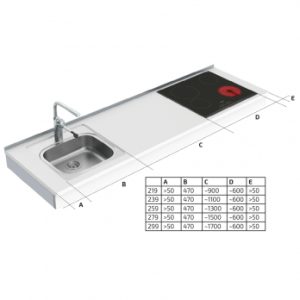

The module is available in left or right version.
The modules have a 10 mm shorter width to automatically give 5 mm gap on either side of the unit for the up and down movement. They are also 15 mm shallower in depth to make room for splash protection/tiles.
The module can be integrated into environments from any kitchen manufacturer.
Functions and Advantages
- 30 cm height adjustment
- Adjustable depth 576-606 mm incl. Front
- Tiltable worktop plane for adjustment
- Cover panels hiding installations on the wall under the worktop
- Aluminium front rim
- Worktop
- Brushed aluminium rear edge strip
- Mixer with long lever and flexible water hoses
- ES11 under-glued inset sink with flexible drain hose
Additional information
| Select model | Left, Right |
|---|---|
| Lift Width | 219.0 cm, 239.0 cm |
| Planning Width | 220.0 cm, 240.0 cm |
