Wall Cabinet Lift Verti 830, 26.5 cm depth
$0.00
Product Overview Lifting systems - Wall cabinet
- Description
- Additional information
- Brand
Description
Fits internal cabinet depth
From 270 mm
Type of lift
Vertical lifting system for wall cabinets
Height adjustment
Motorised, steplessly adjustable 470 mm downwards
Speed level
47 mm/sec.
Operation
Wired button or remote control
Safety
Safety plate under the bottom shelf. If anything touches the plate, the lift stops. The plastic cover in the upper part of the cabinet acts as a safety breaker upwards. If the plastic cover is touched, the lift stops.
Electrical connection
Plug for 230 V, max 0.5 A
Lifting force
40 kg (88lbs)
IP-class
IP 30
Height
720 mm
Fits cabinet width
400 – 1000 mm
Fits cabinet height
700 mm or higher (for heights over 700 mm, a fixed shelf is mounted above the lift)
Fits cabinet, side thickness
16 – 20 mm
Material
Back plate (thickness 16 mm) and shelves (thickness 19 mm) in white melamine. Safety plate of white-painted MDF.
Powder-lacquered sheet metal parts (Alu-grey RAL 9006), motor cover in Alu-grey plastic. Aluminium sliding rail.
Warranty
2 years Warranty
This product is covered by a 2-year warranty against manufacturing defects.

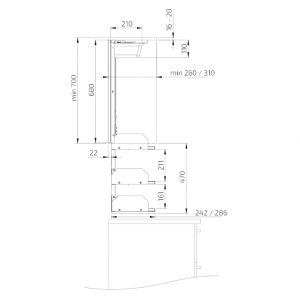

Dimensions
Functions and Advantages

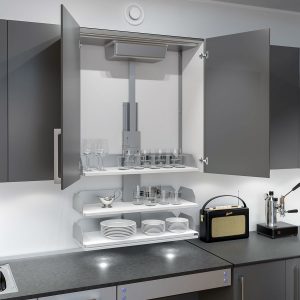

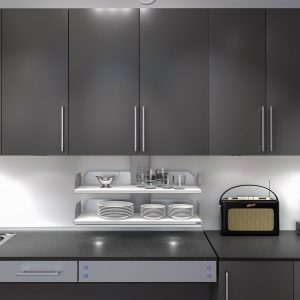

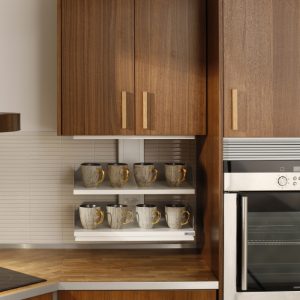

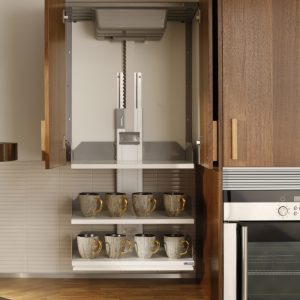

- Lowers the shelf unit vertically down to the countertop
- When lowered, there is free space on the worktop in front of the shelves
- Installed in a new or existing cabinet from which the bottom has been removed

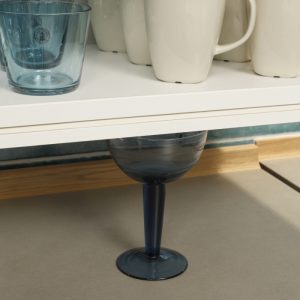

- Safety plate stops the lowering if it comes in contact with any object on the underlying work surface
- Fits cabinets with width 40-100 cm
- Fits cabinets with height 70-110 cm
Standard equipment
- Safety switch under the bottom shelf
- Motor cover with built-in safety switch
Additional information
| Lift Width | 36.0 cm, 46.0 cm, 56.0 cm, 66.0 cm, 76.0 cm, 86.0 cm, 96.0 cm |
|---|---|
| Cabinet Width | 40.0 cm, 50.0 cm, 60.0 cm, 70.0 cm, 80.0 cm, 90.0 cm, 100.0 cm |
