Manual height adjustable washbasin system with mirror and lighting – BASICLINE 401-01
Product Overview Manual Height Adjustable Washbasins
- Description
- Additional information
- Brand
Description
Leg room beneath the basin
527mm
Distance from front edge to mixer tap lever
265mm
Total depth
481mm
Washbasin
Porcelain basin 600x490mm, incl. overflow and plug
Max load basin
100kg
Type of lift
Manual steplessly height-adjustable washbasin module with mirror and lighting Suspended from wall track, adjustable in intervals of 50 mm
Width
600mm
Installation
Wall-mounted
Height adjustment
250 mm, intervals of 50 mm
Lightning
Lighting: Aluminium/plastic, Colour: Chrome
LED lighting12V /6-8W, 4000K (connected to an external switch)
Transformer: Primary (in) 220-240 V, Secondary (out) 12V
Safety

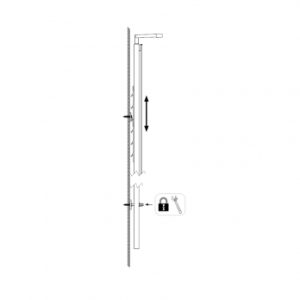

The unit is equipped with a safety lock to prevent accidental unhooking from wall track
Material
Back panel: Plywood coated with high-pressure laminate
Mirror: 1000×600×4 mm in silver-backed float glass with ground edges incl. mirror clips
Wall track and hook suspension: Aluminium
Plumbing connections
Flexible water hoses and drain hose with water trap
Warranty
2 years Warranty
This product is covered by a 2-year warranty against manufacturing defects.

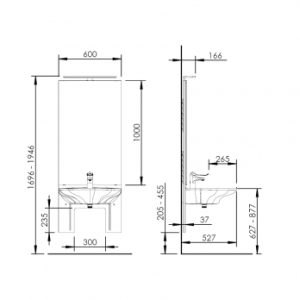

Dimensions
Functions and Advantages
- Leg room under the washbasin: 527mm
- Distance from front edge to tap lever: 265mm

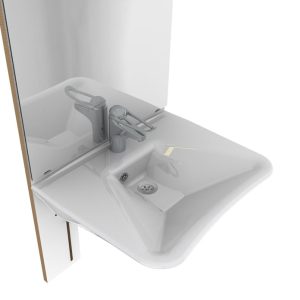

- Wheelchair accessible washbasin with shallow depth and tapered front edge
- Total depth: 52.7cm
- Width: 60cm
- Manual adjustment, at intervals of 50mm
- Mirror and lighting move in tandem with the basin

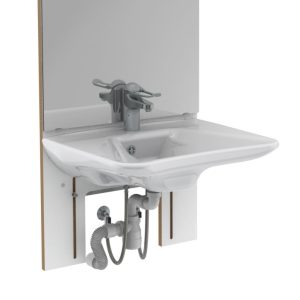

- Free space below the unit for plumbing connections
– Basin
– Mixer tap (425-105)
– Mirror and lighting
– Flexible drain hose with water trap
– Flexible water hoses
Additional information
| Color | White (Formica F7949), Black (Formica K6149), Oak (Formica 2253) |
|---|
