Lift unit Granberg Diago 504 – Wall Cabinet width 60.0 – 110.0 cm
Product Overview Height adjustable frames for wall cabinets
Product Overview Lifting systems - Wall cabinet
- Description
- Brand
Description
Type of lift
Diagonal lifting system for wall cabinets
Height adjustment
Motorised, steplessly adjustable 435 mm downwards, 227 mm outwards
Speed level
17 mm / sec.
Operation
Wired button or radio control
Safety
Safety plate mounted under the cabinet If anything touches the plate, the lift stops
Electrical connection
Plug to 230 V, max 1.5A
Lifting force
150 kg
IP-class
IPX4
Height, frame
720 mm
Space to wall / adjoining cabinet
5 mm
Extension from wall
110 mm
Fits cabinet height
700 – 1100 mm
Fits cabinet depth
260 – 400 mm
Material
Powder-lacquered steel frame (Alu-grey RAL 9006), white-painted safety plates in 12 mm MDF, depth 350 mm
Warranty
2 years Warranty
This product is covered by a 2-year warranty against manufacturing defects.
Dimensions
Wallcabinet lift type Granberg Diago 504 complete set.
Functions and Advantages

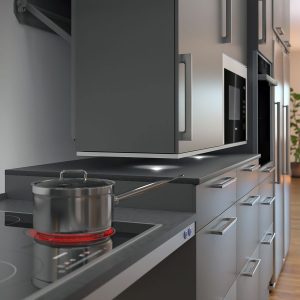

- Lowers one or more cabinets diagonally downwards and forwards to the front of the worktop
- Takes up no space in the cabinet (mounted behind the cabinet)
- Easy to reach the contents since the cabinet comes forward when lowered
- Adjustable depth in all four corners provides the possibility to compensate for inclining wall

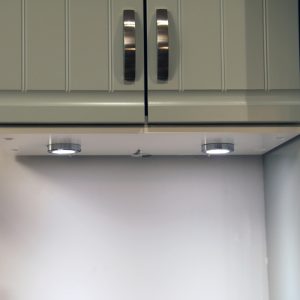

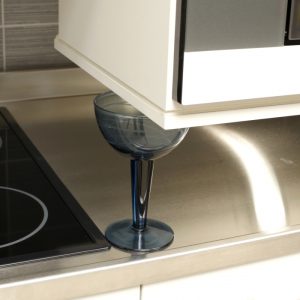

- Safety plate stops the lowering if it comes in contact with any object on the underlying work surface. Mounted under the cabinets
Useful information
- Steplessly adjustable 435 mm downwards, 227 mm outwards
- Fits cabinets with height 700-1100 mm
- Fits cabinets with depth 260-400 mm
- When the lift is in the raised position, the cabinet protrudes 110 mm further. To conceal that, adjoining cabinets must be positioned so they protrude the same distance.
- There must be a gap for movement of 5-8 mm to the next cabinet/wall
