Kitchen Worktop Lift Baselift 6310LA -Floor-mounted, 40 mm front
$0.00
Product Overview Lifting systems - Worktops
- Description
- Additional information
- Brand
Description
Installation
Floor-mounted
Front height
40 mm
Height adjustment
Motorised, steplessly adjustable 300 mm (700-1000 mm excl. top board)
Speed level
30 mm/sec.
Operation
Recessed mounted button or radio control
Safety
The safety strip is placed under the front edge of the worktop.
If anything touches the safety strip, the lifting unit stops
Electrical connection
Plug for 230 V, max 5.0A
Plumbing connections
Connection is made with flexible hoses
Lifting force
100kg
Safety
Safety plate under the lifting system. If anything touches the plate, the lift stops.
IP-class
IP 20
Frame depth
560-590 mm from wall
Dimensions cover plates
2 pcs, width = width of the lift -10 mm, height 438 mm,
thickness 12-20 mm
Width worktop
Width = width of the lift
Depth worktop
565-630 mm (15 mm shallower than worktops on fixed cabinets)
Space to wall / adjoining cabinet
5 mm
Space to wall (for tiles)
15 mm
Tiling
From 700 mm above floor (alternatively all the way down to the floor)
Delivery modules
Ready-mounted worktop incl. safety switch, motors
Fittings supplied
Bracket for fronts
Material
Aluminium frame
Warranty
2 years Warranty
This product is covered by a 2-year warranty against manufacturing defects.

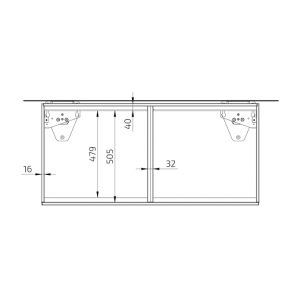

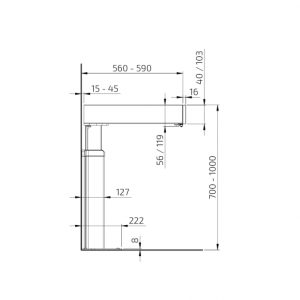

Dimensions
Functions and Advantages
- Can be equipped with hob
- 30 cm height adjustment
- Adjustable depth, 56 – 59 cm from wall
- Frame in aluminium. Prepared from factory. Movable (sideward) and angle adjustable consoles.
- Electronic and motor system “Plug and Play”
- Safety strip covers the front edge under the worktop. (Installed from factory)
- Brackets and screws for installation of fronts and countertop are included in the delivery
Useful information
- The countertops depth must be 15 mm shallower than adjoining countertops (to provide a gap for tiles and movement)
- Width of the countertop = width of the lift
- Electronics and motor system “Plug and Play”
- Width of front = width of lift -4 mm
Height of front: 40 mm, fittings enclosed - Cover panels can hide installations under the worktop 2 pcs width = width of lift -10 mm, height 438 mm, thickness 12-20 mm
Standard equipment
- Factory-mounted aluminium system with movable and tiltable brackets
- Floor-mounted motors
- Safety switch
Additional information
| Lift Width | 59.0 cm, 60.0 cm, 69.0 cm, 70.0 cm, 79.0 cm, 80.0 cm, 89.0 cm, 90.0 cm, 99.0 cm, 100.0 cm, 109.0 cm, 110.0 cm, 119.0 cm, 120.0 cm, 129.0 cm, 130.0 cm, 139.0 cm, 140.0 cm, 149.0 cm, 150.0 cm, 159.0 cm, 160.0 cm, 169.0 cm, 170.0 cm, 179.0 cm, 180.0 cm, 189.0 cm, 190.0 cm, 199.0 cm, 200.0 cm, 209.0 cm, 210.0 cm, 219.0 cm, 220.0 cm, 229.0 cm, 230.0 cm, 239.0 cm, 240.0 cm |
|---|---|
| Cabinet Width | 60.0 cm, 61.0 cm, 70.0 cm, 71.0 cm, 80.0 cm, 81.0 cm, 90.0 cm, 91.0 cm, 100.0 cm, 101.0 cm, 110.0 cm, 111.0 cm, 120.0 cm, 121.0 cm, 130.0 cm, 131.0 cm, 140.0 cm, 141.0 cm, 150.0 cm, 151.0 cm, 160.0 cm, 161.0 cm, 170.0 cm, 171.0 cm, 180.0 cm, 181.0 cm, 190.0 cm, 191.0 cm, 200.0 cm, 201.0 cm, 210.0 cm, 211.0 cm, 220.0 cm, 221.0 cm, 230.0 cm, 231.0 cm, 240.0 cm, 241.0 cm |
