Astor Invincible Height Adjustable Changing Table
Astor Invincible
The Astor Invincible height adjustable changing and showering table has been designed to withstand robust treatment in public settings yet provides a very comfortable and practical solution for the complex needs of daily caregiving. The height of this wall-mounted changing and showering table can be easily adjusted up or down to minimise carer strain.
Quick download the key product documents here or visit our downloads page for more downloads:
- Description
- Brand
Description
The Astor Invincible is a robust height adjustable changing table that has been designed specifically for public Changing Places Toilets. It delivers uncompromised user comfort, simple hygienic upkeep, and a tamper-resistant design.
The Astor Invincible is believed by many experts to be the most robust changing table available, with its cut-resistant and graffiti proof stretcher, anti-tamper screws and fixings and easy access non-tamper embedded controls (no handset to tamper with/remove). The Invincible has been built using robust materials so that parts cannot easily be broken or removed and there are no visible or accessble wires or cables. Specialist security tools are required to access the working elements of this product for maintenance, leaving an externally sleek and tamperproof changing and showering table. Tested to the highest rated level against impact – IK10.
The Astor Invincible incorporates an innovative split-guard. For greater access to offer care or comfort, one part of the guard can be flipped down, whilst maintaining an element of security with the other part of the guard in place.
The Astor Invincible stows neatly when not in use to maximise room space, held in place with twin gas struts. It features battery back-up for safe lowering in the event of a power failure, and an emergency stop button.

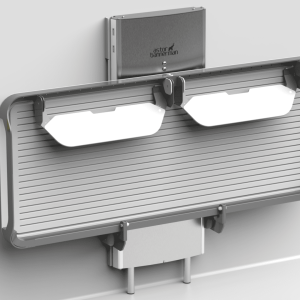

Patented Stretcher – Flexible giving great comfort – Simple cleaning – Highly cut resistant bed

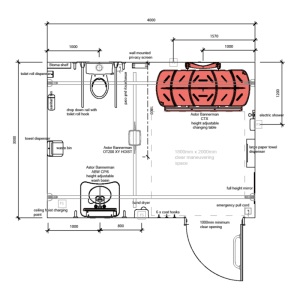

Changing Places – The Astor Invincible is the first and only table designed specifically for use in a Changing Places toilet and public or shared environment
Tamper-Proof Design – Integrated control – Security fittings – No removable parts – No exposed cables – IK10 tested and produced to BS EN 62262
Split Guard – Better access – Improved care – Versatility
A range of service & maintenance packages

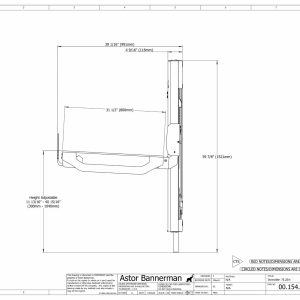

Height adjustable range: 300 mm to 1040 mm
AC input: 110VAC-240VAC, 50/60Hz, 382VA
Power supply: Class I power supply
Applied part: Applied part type ‘B’
Battery specification: Lead acid battery/ “non-spillable” Input 30V – Output 24V
Supplier reference: TiMotion (TBB2-4307-001)
Battery model: TiMotion TBB2 1.2A
Fuses: 5Amp fuses (External to the device, part of the mains supply system)
Duty cycle: 10% maximum
Maximum working load: 500 lbs (227 kg)
Sound emission: LAeq 56dB at maximum working load

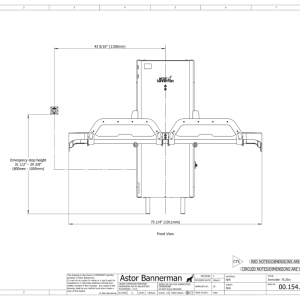

Length: 75.25” (1911 mm) or 71” (1800 mm)
Height: 76.25” (1937 mm)
Depth: 40” (990 mm) – Stretcher and guard deployed
Weight of product: 216 lbs (98 kg)
Materials: Mild Steel, Stainless Steel, Polyethylene
Operating ambient temperature range: 10°C to 40°C / 50°F to 104°F
Operating relative humidity range: 10 – 80% not condensed at 20°C / 68°F
Operating atmospheric pressure: 50kPa to 106kPa
IP Class: IPX4
Transport & storage conditions: 10°C to 40°C / 50°F to 104°F 10 – 80% not condensed at 20°C / 68°F
