AquaClean Mera Care Assisted Toilet
The Geberit AquaClean Mera Care shower toilet is designed to put you in control. Its innovative features include a hybrid hot water system with continuous flow heater and water storage heater guarantees warm water even if the wash is run one after another.
The one-minute wash cycle draws from the warmed tank of water and the continuous flow heater on the first use, this can be followed by another minute of wash with warm water directly from the continuous flow heater, whilst the water storage tank refills.
Thanks to this technology you’ll always have a warm water wash and the confidence to feel clean. Warm air drying will leave you clean and fresh, along with a single activation control panel for ease of use. Everything is designed with your comfort and convenience in mind.
Features
- Description
- Brand
Description
Overview
The AquaClean Mera Care includes a number of innovative features and has been designed specifically to put the user in control. Every aspect of its functioning can be adjusted, from the position of the spray arm to the water temperature and intensity, and the dryer setting.

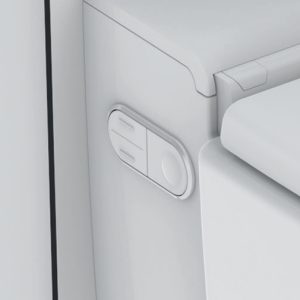

The user can control the process either using a pushbutton control panel on the side of the toilet or a neat handheld remote or using a touch-free control. There is also an app which will save up to four individual user profiles, with preferred settings for every action, including flushing.

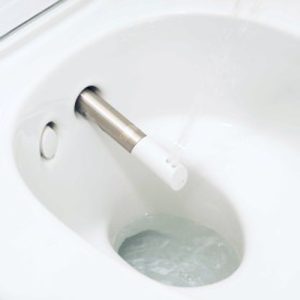

WhirlSpray shower technology allows for five adjustable shower pressure settings, with a slight oscillating movement which ensures a feeling of exceptional cleanliness.
An extended water washing cycle is also possible – up to two minutes, as the continuous flow heater and built-in immersion heater keep the warm water tank full.

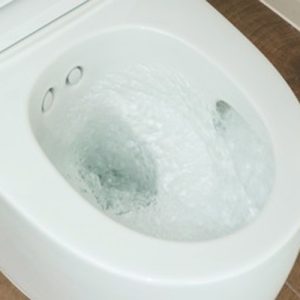

Quiet TurboFlush technology and a rimless ceramic pan ensure excellent flushing and great hygiene: no awkward areas that are difficult to clean. The ceramic has a unique dirt repellent finish which makes it easy to care for.
When the Mera Care is installed, the height can be set anywhere from 440 mm to 560 mm, depending on the user’s requirements. This is achieved thanks to the built-in height adjustable stainless steel frame.
The specially strengthened seat has been designed to be sturdy enough to withstand sideways transfers. It has a safe working load of 190 kg.
Standard features of the AquaClean Mera Care include:
→ Strengthened seat

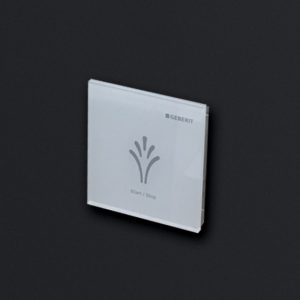

→ Touchless remote control

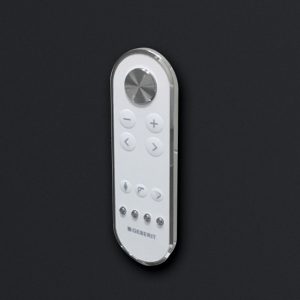

→ User remote control
→ Lady wash
→ Oscillating spray
→ Pulsating wash
→ Self-servicing function
→ Height adjustable frame
→ Compatible with end-user app
Code: Geberit-MERA
Specifications
Model
AquaClean Mera Care Assisted Toilet
Function
Independent Toileting with Washing and Drying Function
Dimensions
970mm x 400mm
Colour
White
Weight Capacity
190kg
Protection Degree
IPX4
Nominal voltage (V)
230V AC
Mains Frequency (Hz)
50Hz
Power Consumption (W)
2000 W
Power Consumption (W)
≤ 0.5 W
Flow pressure (bar)
0.5–10 bar
Flow pressure (kPa)
50–1000 kPa
Operating temperature (°C)
5–40 °C
Water temperature, adjustment range (°C)
34–40 °C
Flush volume, factory setting (l)
6 and 4 l
Air volume flow rate, dryer (m³/h)
6 m³/h
Air volume flow rate, odour extraction (m³/h)
6 m³/h
Calculated flow rate (l/s)
0.03 l/s
Flow rate, anal shower (l/min)
1.1–2.0 l/min
Minimum flow pressure for calculated flow rate (bar)
0.5 bar
Minimum flow pressure for calculated flow rate (kPa)
50 kPa
Application
Domestic, Nursing Homes, Hospitals, Schools
Dimensions

Seat Height Options

445mm Seat Height

465mm Seat Height

485 Seat Height

505 Seat Height

525mm Seat Height
Additional Options

Seat Lid
(not advisable for side transfers, hoisting or shower chairs)
Power Options
